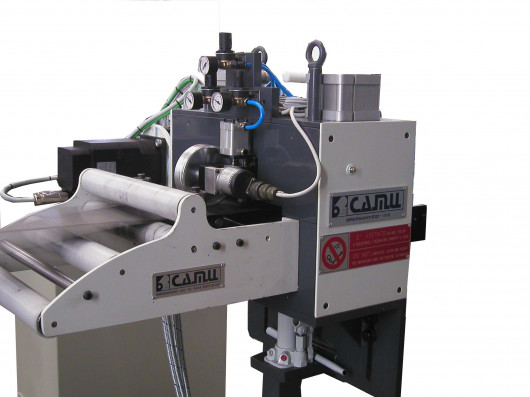

Our roll feeds of series "AE" with feeding roll diameter 80 mm are available as standard versions with configuration as indicated below:
• Feeding roll diameter 80 mm
• Pneumatic piloting of the upper feeding roll
• Material guiding installation at the entry side
• Press mounting plate
• Manual height adjustment 70 mm
• Maximum feeding speed 90 meters / minute
• Standard CNC-feed control
• Maintenance-free AC-Servomotor
• Roughness of feeding rolls 0,2 micron
• Mamaterial widths of 200 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm
• Minimum material thickness starting from aprox 0,6 mm
• Maximum material thickness 4,0 – 1,5 mm, depending on material width
Optionally for these roll feeds there are accessories available, like for example:
• Measuring wheel system for detection of slip
• Electronic rotary cam
• Siemens-feed control
• Thin strip guidance
• Non-driven straightening devices with 5 straightening rolls
Regarding electric control we can offer our roll feeds with low priced standard control, upon request we also can offer them with Siemens-control. Here we follow to your preferences. Our roll feeds also are very well usable for being integrated into existing coil feeding lines of any brand. Let us have your inquiry for your demand for substitution of roll feed. We will be happy to provide you with an interesting offer.
Our roll feeds are produced by our partner CAMU at Bressanvido / Italy. CAMU has more than 30 years of experience regarding production of coil feeding lines and all types of machines being part of such lines. Within Germany CAMU exclusively is represented by Seidel Handlingsysteme GmbH.
We will take care for you from first consulting, also at site, via submission of suitable offer and order processing up to the corresponding service.
At the area on the right side you will find a list of standard roll feeds out of the series described above, including the technical data of the single models. If you will not find there the suitable model or if you will have wishes deviating from the listed specifications, please do contact us.
Please inform us about your requirement regarding the roll feed searched by you. Basing on the base machines listed on this page as well as optional accessories we will configurate your individual roll feed. We are prepared to check and realise any further adaptation of the roll feed which may be needed.
Please contact us by phone or email.
