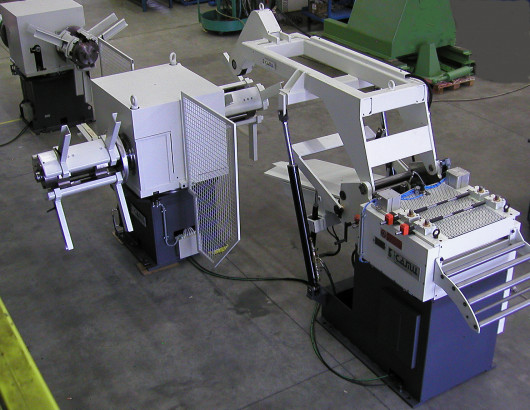

Medium-sized Double Decoilers

The range of Medium-sized Double Decoilers covers machine sizes with main data indicated below:

• Max coil weight up to 2 x 6.000 kg
• Material widths up to 1.000 mm
• Max coil outside diameter up to 1.600 mm
• Versions with manual hinged expansion
• Versions with hydraulic hinged expansion
• Versions with hydraulic sliding wedge expansion
• Expansion range for versions smaller 4 tons to be 470 - 630 mm
• Expansion range for versions 4 tons and bigger to be 450 - 550 mm
• Versions as Pull-Off Double Decoilers without drive
• Versions with constant-speed drive, 17 r.p.m. at  the decoiler shaft

Optionally for these Medium-sized Double Decoilers there are accessories available, like for example:

• Loop control by initiator (proximity switch), lever arm or ultrasonic sensor
• Pneumatically operated hold down arms with non-driven pressure rolls
• Hydraulically operated hold down arms with non-driven pressure rolls
• Hydraulically operated hold down arms with driven pressure rolls
• Pneumatically closing disk brakes
• Pneumatically opening disk brakes (fail-safe)
• hydraulically operated lateral traversing unit, travelling distance 300 mm
• Coil limiting arms
• Expansion range enlargement by additional segments for versions with 4 tons and more load,
  expansion range 550 - 650 mm
• Variable-speed drive by frequency converter

Please inform us about your requirement regarding the Medium sized Double Decoiler searched by you. Basing on the base machines listed here plus optional available accessories we can configurate your individual double decoiler. We are prepared to check and realize additional adaptations of the decoilers, whereever requested by you.

Please contact us by phone or email.
