Container Tilters

The container tilters offered here are used at industry and sales for dispatching and manipulating of goods at an ergonomical height.

Container Tilters are available as 3 different versions.

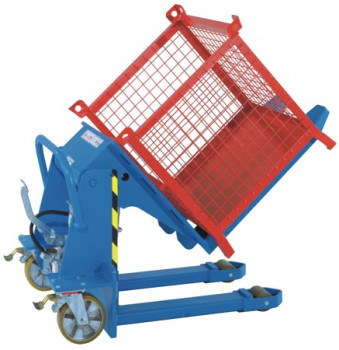

• mobile Container Tilter Model BN
  • Load capacity up to 500 kg, 1.000 kg or 1.500 kg
  • Tilting angle max 90°
  • Operating voltage 12V, 230V or 400V
  • Fork length 820 mm, total width outside fork to outside fork 550 mm
  • Rolls with diameter 200/85 mm
  • with hydraulic foot pump or electric hydraulic pump

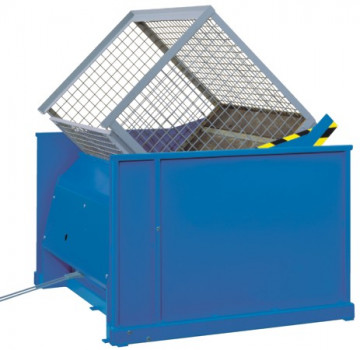

• stationary Container Tilter Model BN-SH
  • Load capacity up to 1.000 or 2.000 kg
  • Tilting angle max 90°
  • Operating voltage 400V
  • Control voltage 230V
  • Angle plate 900 x 1.250 mm for pick up of lattice boxes
  • Side covering as safety installation


• stationary Container Tilter Model BN-SG
  • Load capacity up to 1.000 or 2.000 kg
  • Tilting angle max 35°
  • Operating voltage 400V
  • Control voltage 230V
  • Platform 1.400 x 1.000 mm
  • Safety contact strip
  • Loading by forklift truck


We are at your disposal at any time for any further information regarding Lifting-Tilting-Tables, which may be needed. We would like to provide you with an interesting offer.
